HSKA100HYDRO32X110T

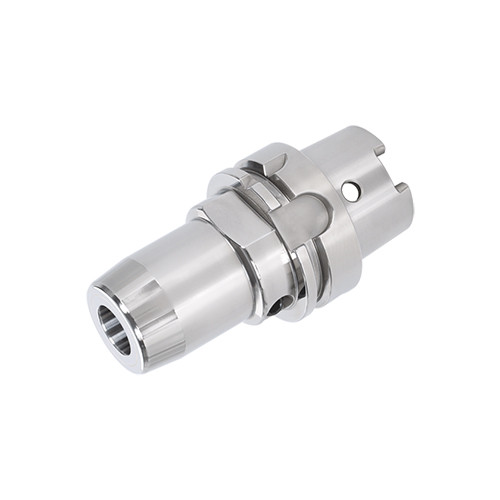

DIN69893 HSK A Integrated Holder High Precision Hydraulic Chuck
Price: Log in For Price

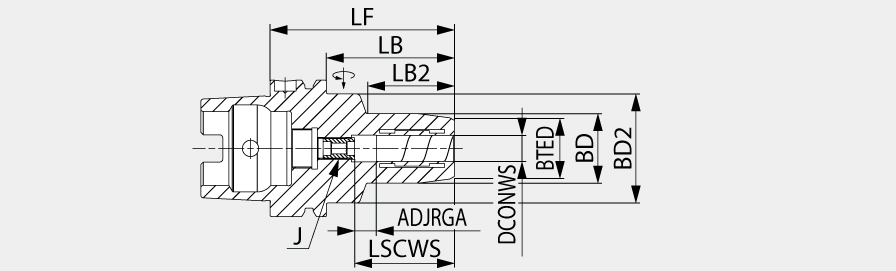

| Connection Diameter Machine Side (DCONMS) | 100 mm | Shank Type | Round |
| Body Length (LB) | 81 mm | Shank Size (SS) | 100 |
| Body Length_2 (LB_2) | 62 mm | Application | | Face contact interface | |
| Thread Designation Inside (THID) | M16x1 | Tool Type | HSK |
| Body Diameter (BD) | 64 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 75 mm | Body Taper End Diameter (BTED) | 60 |
| Overall Length (OAL) | 110 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 61 mm | Unit | M |
Product Features
| Family Description | DIN69893 HSK A Integrated Holder High Precision Hydraulic Chuck | FamilyName | HSK A-HYDRO-T |
| Remarks | Wrench is not included. Please order separately. Please use cooling tube and wrench for it (not included). Tool shank tolerance: h6 Balanced to G2.5, max n: 25,000 min 1 | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.0000
Name
Hydraulic Holders
FamilyName
HSK A-HYDRO-T
BrandName
Tungaloy
