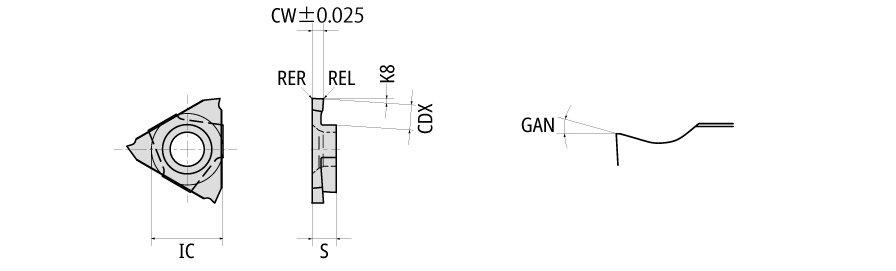

| Cutting Width (CW) | 0.03″ | Grade | 650 |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.079″ | Application | | Inserts for miniature | |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ | Body Material | Carbide |
| Insert Rake Angle (GAN) | 14 Degrees | Unit | I |
| Coating | AlTiN |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | GTMX32 type insert |
Shipping Info
Weight per item
0.0091
Name

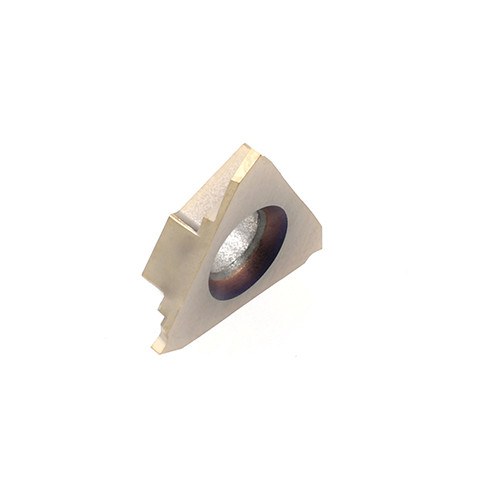

Groove/Turn Indexable Inserts
FamilyName
GTMX32 type insert
BrandName
NTK Cutting Tools
