TPYD06J125B25.4R26

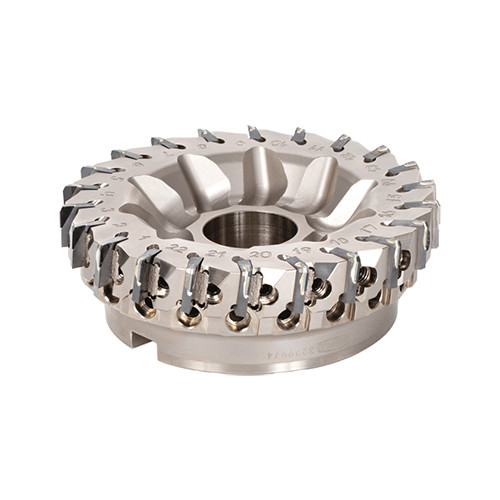

Wedge clamp type face milling cutter with PCD inserts for machining non-ferrous metal, Bore type, lightweight type
Price: Log in For Price

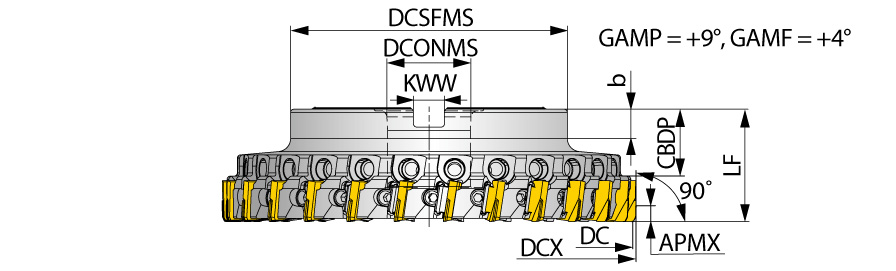

| Cutting Diameter (DC/DCX) | 127 mm | Body Material | Steel |
| Cutting Diameter (DC) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 127 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 26 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 4.5 mm | Functional Length (LF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 35 mm | Unit | M |
| Master Insert Identification (MIID) | YDEN0603PDSR-D |
Product Features
| Family Description | Wedge clamp type face milling cutter with PCD inserts for machining non-ferrous metal, Bore type, lightweight type | FamilyName | TPYD06 lightweight type |
| Remarks | Wrench, Grip, and Shell locking bolt are not included in the box. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TPYD06 lightweight type
BrandName
Tungaloy
