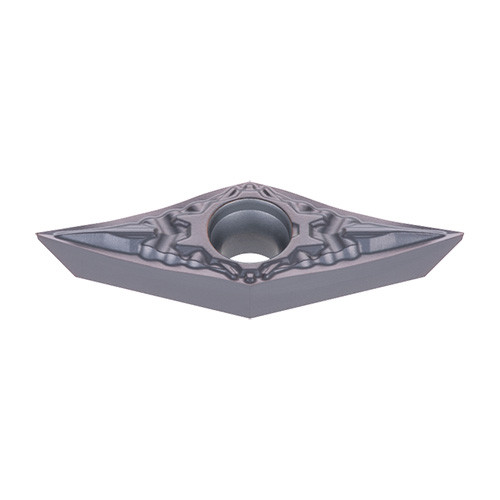

VPGT 22V MF-JS KS05F
Insert for finishing, for miniature machining, with sharp edge
Price: Log in For Price

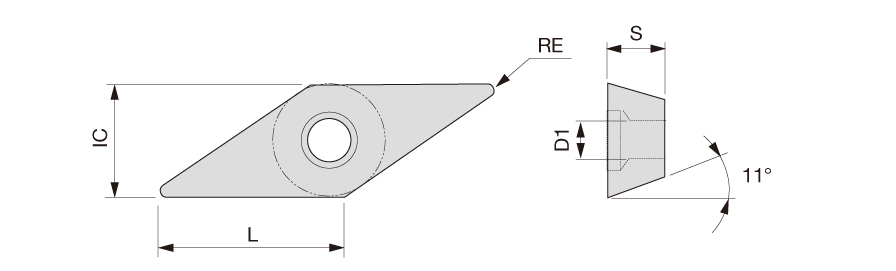

| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0197″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.002″ | Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Cutting Edge Length (L) | 0.441″ | Max. Turning Feed (ft(max)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | JS |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | KS05F | Cutting Edge Effective Length (LE) | 0.429″ |
| Fixing Hole Diameter (D1) | 0.11″ | Unit | I |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Insert for finishing, for miniature machining, with sharp edge | FamilyName | VPGT-JS |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
VPGT-JS
BrandName
Tungaloy
