FNTR-13N-1-X.XXX(-.629

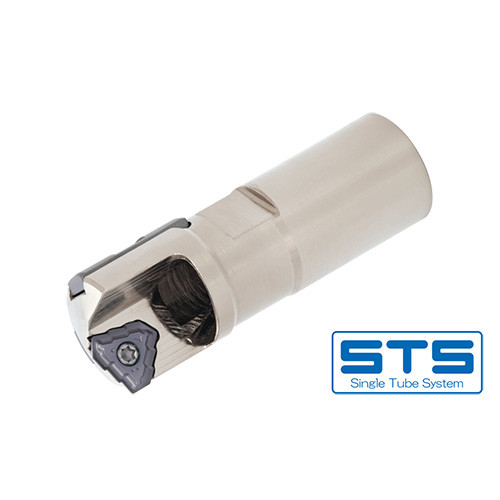

Indexable head with internal single-start thread for single tube system (STS)
Price: Log in For Price

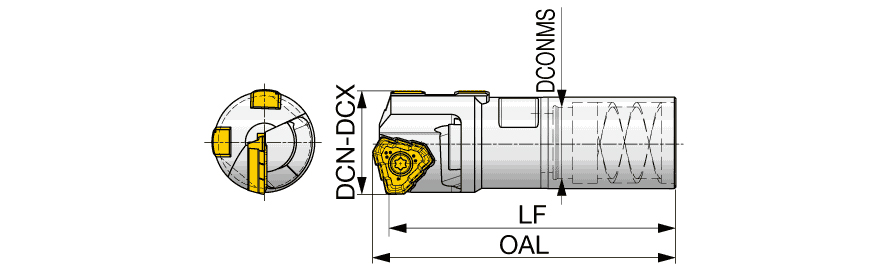

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 0.6295″ |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Measurement Type | Inch |
| Functional Length (LF) | 2.244″ | Body Material | Steel |
| Overall Length (OAL) | 2.323″ | Unit | I |
| Cutting Diameter Minimum (DCN) | 0.6106″ |
Product Features
| Family Description | Indexable head with internal single-start thread for single tube system (STS) | COO | JAPAN |
| Remarks | These products are made to order on request. |
