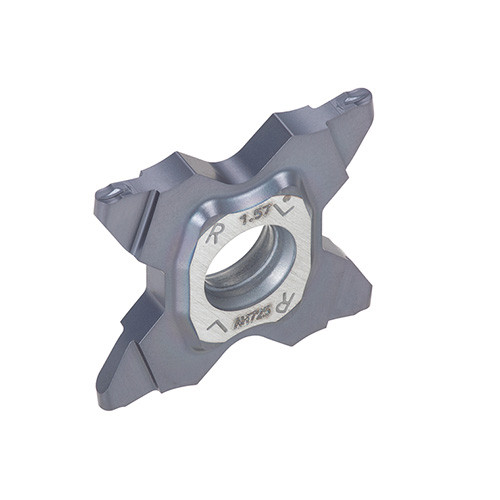

TCS27-239-120 AH7025
Precision grooving inserts with 4 cutting edges (With full radius). General purpose type.
Price: Log in For Price
| Cutting Width (CW) | 0.094″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0472″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.224″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH7025 | Body Material | Carbide |
| Application | | Inserts | | Unit | I |
Product Features
| Family Description | Precision grooving inserts with 4 cutting edges (With full radius). General purpose type. | FamilyName | TCS27-Full R |

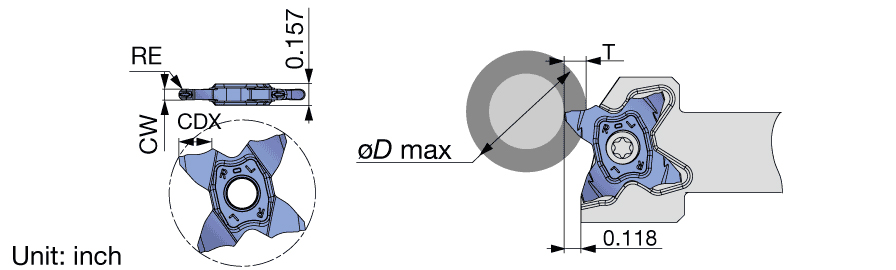

| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "Product report". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Inserts
FamilyName
TCS27-Full R
BrandName
Tungaloy
