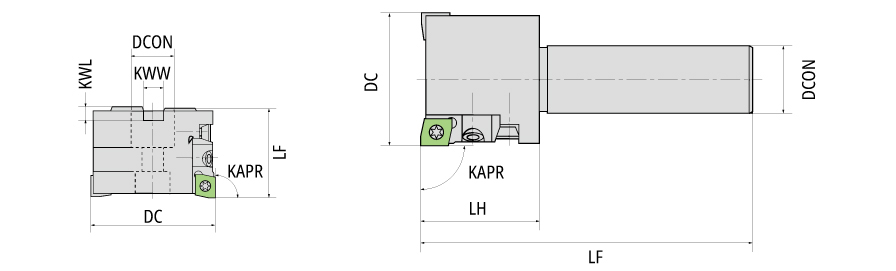

| Cutting Diameter (DC/DCX) | 1.969″ | Functional Length (LF) | 4.134″ |
| Cutting Diameter (DC) | 1.969″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 5″ | Measurement Type | Inch |
| Application | | For Aluminum material | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Unit | I |
| Head Length (LH) | 1.772″ |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | HPC Fixed type cutter |
Shipping Info
Weight per item
1.3228
Name

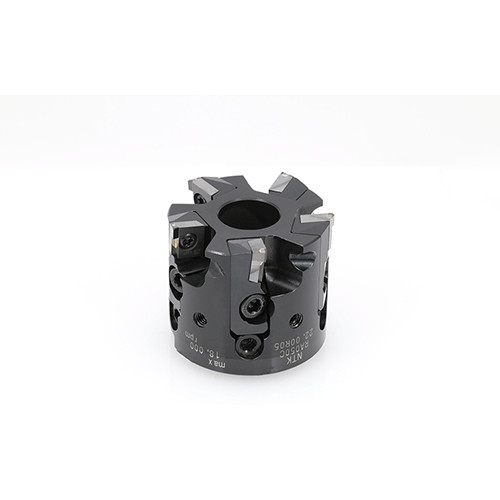

Indexable End Mills
FamilyName
HPC Fixed type cutter
BrandName
NTK
