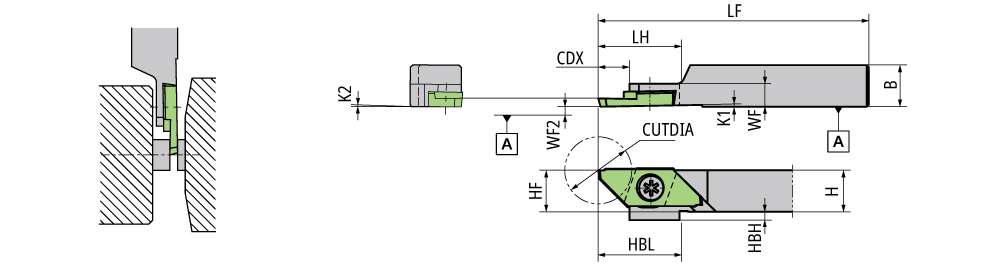

| Cutting Depth Maximum (CDX) | 0.295″ | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 0.472″ | Application | | Parting | |
| Shank Width (B) | 0.472″ | Body Material | Steel |
| Functional Width (WF) | 0.217″ | Measurement Type | Inch |
| Functional Length (LF) | 3.346″ | Head Bottom Offset Height (HBH) | 0″ |
| Head Length (LH) | 0.787″ | Unit | I |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | CTPA-SUB type toolholder for sub-spindle |
Shipping Info
Weight per item
0.2991
Name
Groove/Turn Indexable Holders
FamilyName
CTPA-SUB type toolholder for sub-spindle
BrandName
NTK Cutting Tools
