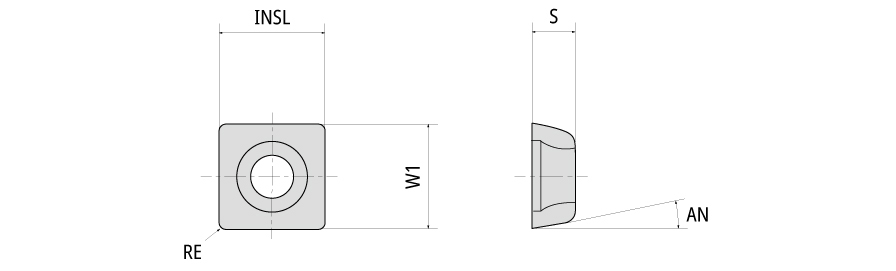

| Application | | Inserts for miniature | | Clearance Angle Major (AN) | 7 Degrees |
| Insert Length (INSL) | 0.219″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.187″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.074″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | DM4 |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | CLH type INSERT |
Shipping Info
Weight per item
0.0011
Name
Milling Indexable Inserts
FamilyName
CLH type INSERT
BrandName
NTK
