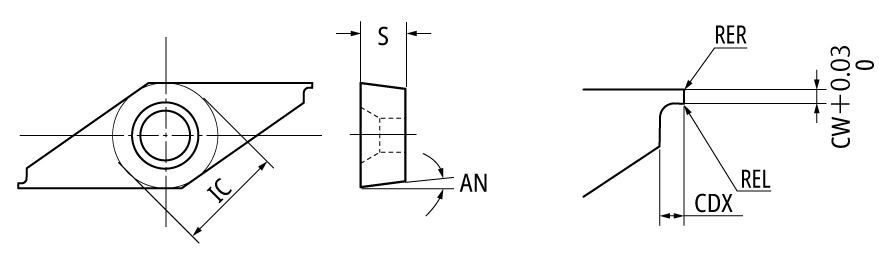

| Application | | Inserts for miniature | | Depth of Cut Maximum (APMX) | 0.1024″ |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Depth Maximum (CDX) | 0.118″ |
| Coating | TiCN | Unit | I |
| Grade | VM1 |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | CSV series / Grooving |
Shipping Info
Weight per item
0.0048
Name

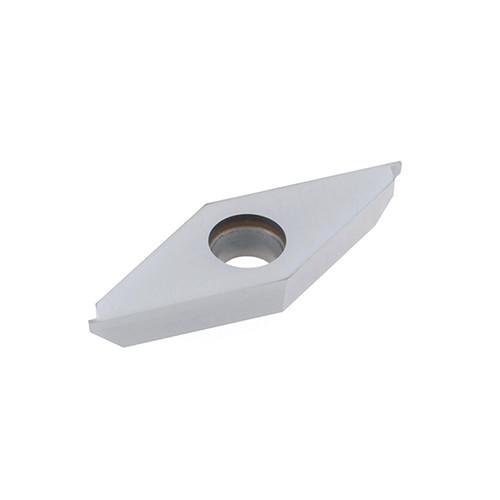

Turning Indexable Inserts
FamilyName
CSV series / Grooving
BrandName
NTK
