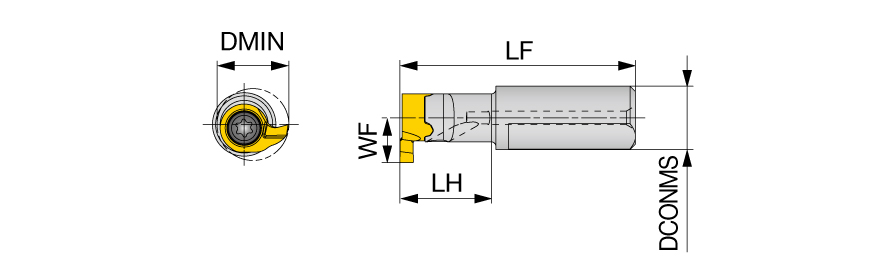

| Cutting Width Minimum (CWN) | 0.039″ | Connection Diameter Machine Side (DCONMS) | 0.276″ |
| Cutting Width Maximum (CWX) | 0.039″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.252″ | Application | | Internal grooving | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 0.197″ | Body Material | Steel |
| Functional Width (WF) | 0.116″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 0.945″ | Measurement Type | Inch |
| Head Length (LH) | 0.315″ | Unit | I |
Product Features

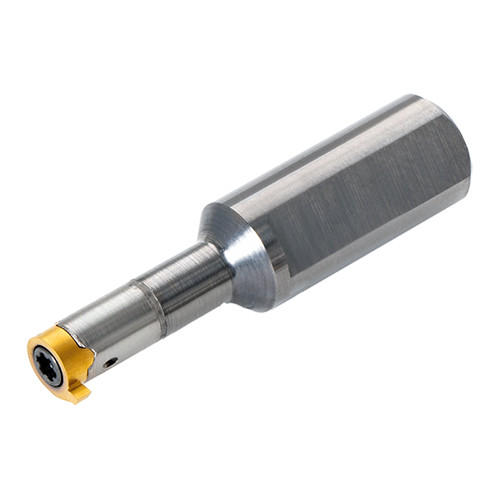

| Family Description | TinyMiniTurn internal grooving and threading toolholder | FamilyName | A/E-SMR |
| Remarks | DMIN and WF differ based on each insert geometry. For DMIN and WF, please refer to insert size table. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
A/E-SMR
BrandName
Tungaloy
