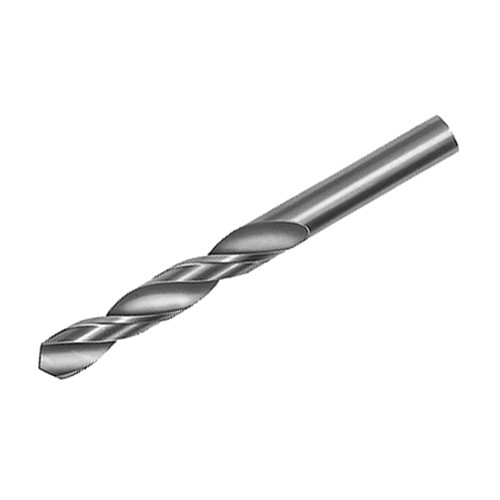

CDS-021 UM
Solid drill for cast iron and aluminum alloy, with 120 deg point angle, L/D = 3 - 8
Price: Log in For Price

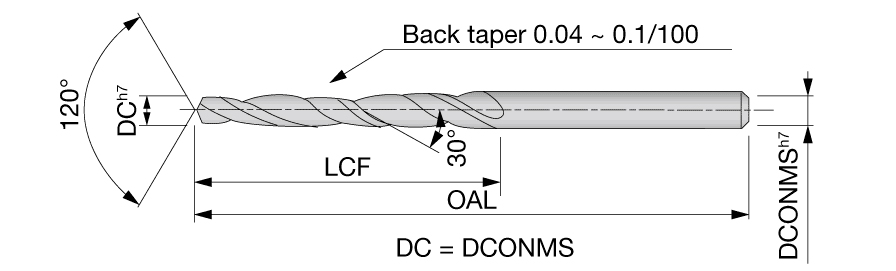

| Drill Bit Size / Cutting Diameter (DC) | 2.1 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.1 mm | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | solid carbide Drills |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | UM |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 2.1 mm | Overall Length (OAL) | 45 mm |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Point Angle (SIG) | 120 Degrees | Unit | M |
| Point Length (PL) | 0.61 mm |
Product Features
| Family Description | Solid drill for cast iron and aluminum alloy, with 120 deg point angle, L/D = 3 - 8 | COO | JAPAN |
| Remarks | 1.00 =< DC =< 3.00 / DC tolerance h7: 0 / 0.010 3.00 < DC =< 6.00 / DC tolerance h7: 0 / 0.012 6.00 < DC =< 9.00 / DC tolerance h7: 0 / 0.015 |
Shipping Info
Weight per item
0.0060
Related Documentation
[CAUTIONARY NOTES]@To prevent edge chipping, hone cutting edges as follows: @Honing width: 0.02 - 0.05 mm @Honing angle: -20 deg to -30 deg. @Chipping is likely to occur on edges whilst drilling hard materials, a larger honing width is recommended. @When drilling into an inclined surface, special care should be taken to prevent drill breakage. Use of drill bushing is recommended for such case.
