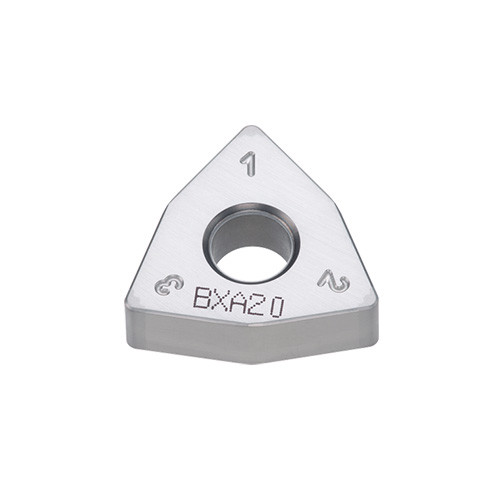

6QS-WNGA 432 FW BXA10
Negative relief angle, G class, trigon CBN insert, applied WavyJoint brazing technology
Price: Log in For Price
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0315″ |

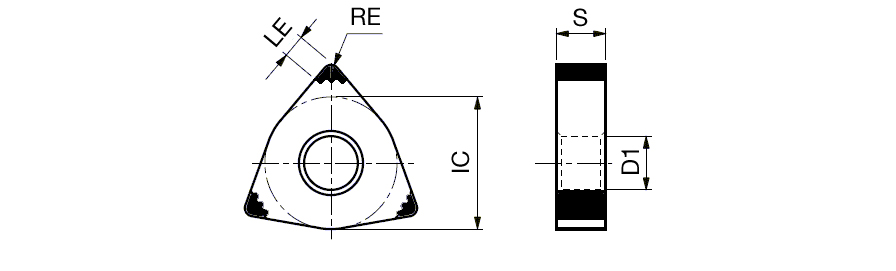

| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Wavy-FW |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiAlN+TiCN | Body Material | Carbide |
| Grade | BXA10 | Cutting Edge Effective Length (LE) | 0.071″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief angle, G class, trigon CBN insert, applied WavyJoint brazing technology | FamilyName | 6QS-WNGA |
| Remarks | The last letter of designation means as below. F: Sharp edge L: Edge preparation for reducing flank wear LF: Edge preparation for reducing burrs LC: Edge preparation for reducing crater wear H: Edge preparation for reducing fracture FW, W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
6QS-WNGA
BrandName
Tungaloy
