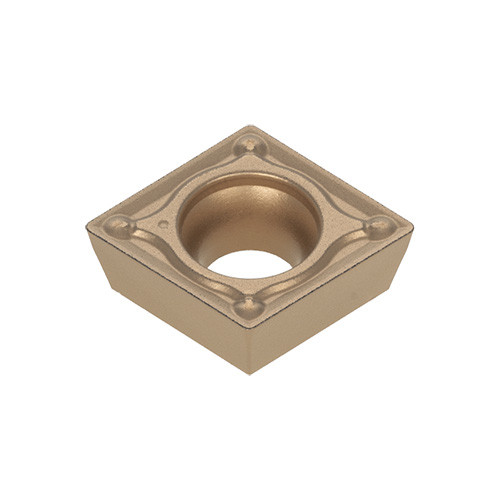

CPMT 21.50.5 TSF NS9530
Positive 11deg relief ang., M class, 80deg rhombic inserts for finishing to medium cutting
Price: Log in For Price

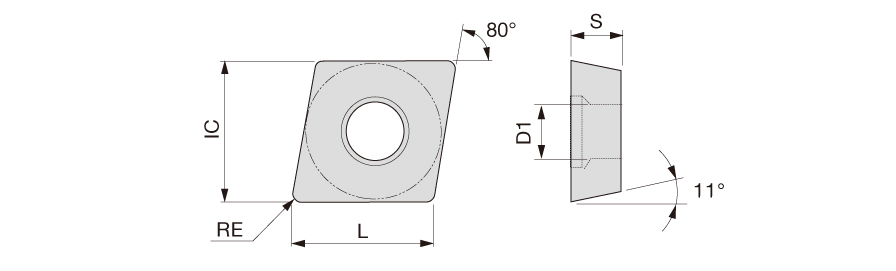

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0295″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0984″ |
| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.256″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Posi-TSF |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.238″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features
| Family Description | Positive 11deg relief ang., M class, 80deg rhombic inserts for finishing to medium cutting | FamilyName | CPMT-TSF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CPMT-TSF
BrandName
Tungaloy
