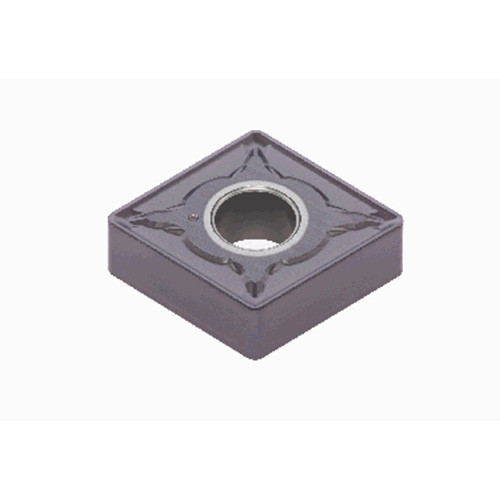

CNMG 644 SH AH6235
Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting of stainless steel
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0787″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.2362″ |
| Corner Radius (RE) | 0.0629″ | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.76″ | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Chip Breaker Type | SH |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH6235 | Cutting Edge Effective Length (LE) | 0.634″ |
| Fixing Hole Diameter (D1) | 0.312″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting of stainless steel | FamilyName | CNMG-SH |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNMG-SH
BrandName
Tungaloy
