3QP-TPGN 222 BX910
Positive 11deg relief ang., M/G class, triangular CBN insert
Price: Log in For Price
| Applicable Material | | Cast Iron | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.002 ″/rev |

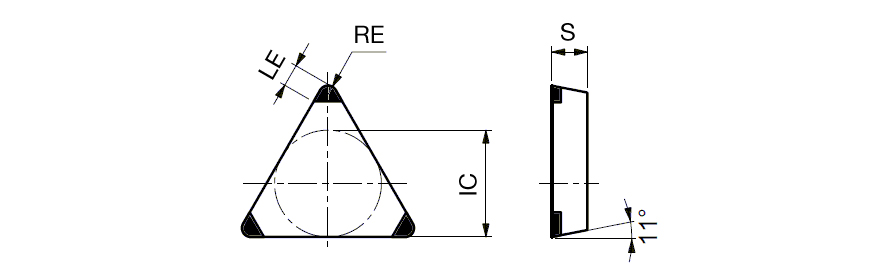

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX910 | Cutting Edge Effective Length (LE) | 0.075″ |
| Tool Type | Turn Ultra hard Inserts | Unit | I |
| Min D.O.C. | 0.0019″ |
Product Features
| Family Description | Positive 11deg relief ang., M/G class, triangular CBN insert | FamilyName | 3QP-TPM/GN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0331
Name
Turning Indexable Inserts
FamilyName
3QP-TPM/GN
BrandName
Tungaloy
