| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-CM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5115 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.54″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features

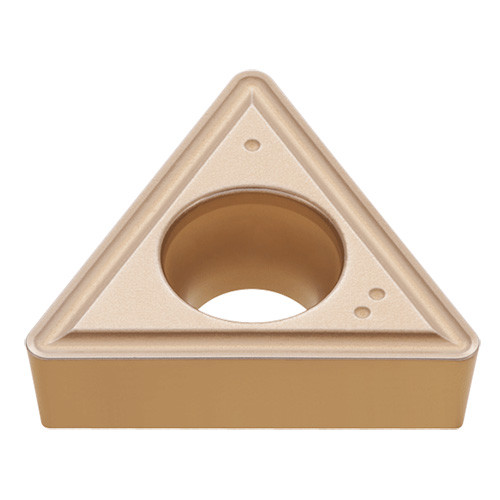

| Family Description | Positive 7deg relief ang., M class, triangular insert, for multi-purpose cutting of grey and ductile cast iron | FamilyName | TCMT-CM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1389
Name
Turning Indexable Inserts
FamilyName
TCMT-CM
BrandName
Tungaloy
