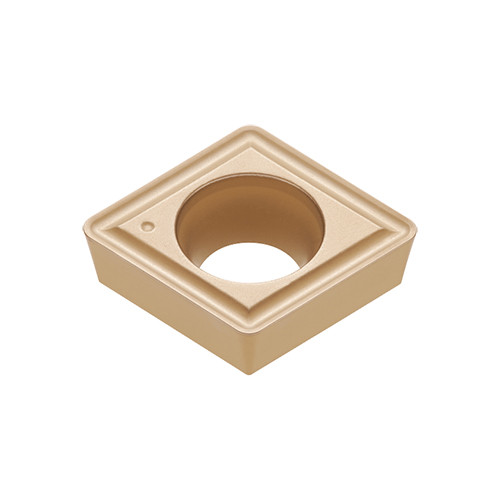

CPMT 2.51.51 CM T5115
Positive 11deg relief ang., M class, 80deg rhombic insert, for multi-purpose cutting of grey and ductile cast iron
Price: Log in For Price
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.319″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-CM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5115 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.134″ | Cutting Edge Effective Length (LE) | 0.285″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features
| Family Description | Positive 11deg relief ang., M class, 80deg rhombic insert, for multi-purpose cutting of grey and ductile cast iron | FamilyName | CPMT-CM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0639
Name
Turning Indexable Inserts
FamilyName
CPMT-CM
BrandName
Tungaloy
