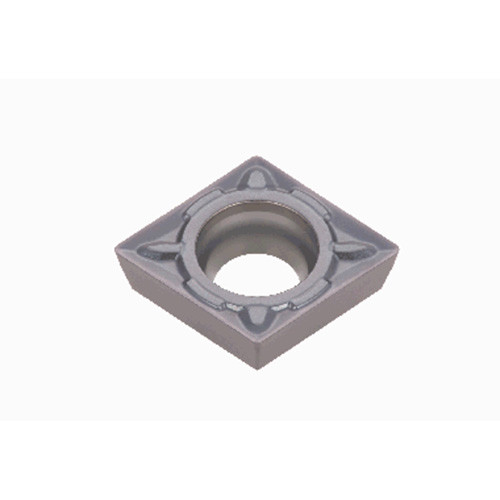

CPMT 321 PM AH725
Positive 11deg relief ang., M class, 80deg rhombic insert, for medium cutting
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0393″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-PM |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.349″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features
| Family Description | Positive 11deg relief ang., M class, 80deg rhombic insert, for medium cutting | FamilyName | CPMT-PM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0860
Name
Turning Indexable Inserts
FamilyName
CPMT-PM
BrandName
Tungaloy
