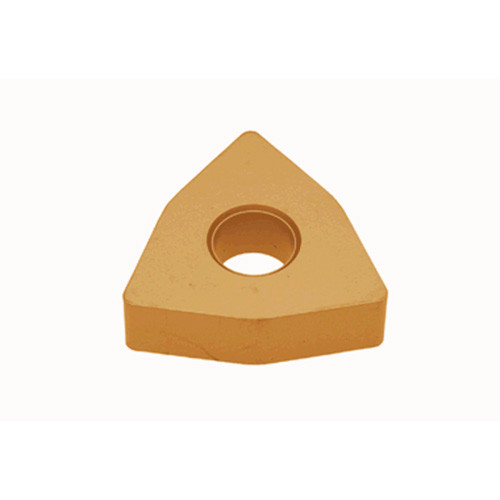

WNMA 433 T5125
Negative relief ang., M/G class, trigon insert, without chipbreaker for finishing to medium cutting
Price: Log in For Price

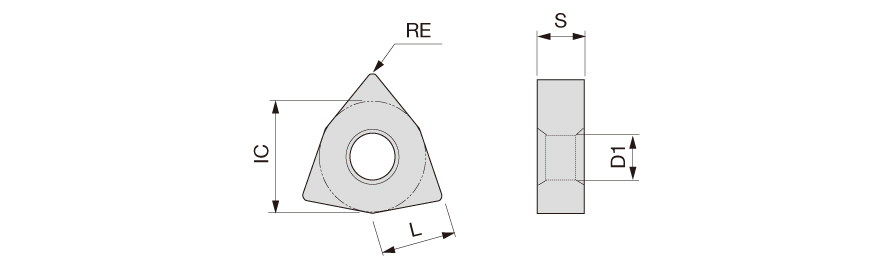

| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0007″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | FT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T5125 | Cutting Edge Effective Length (LE) | 0.296″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M/G class, trigon insert, without chipbreaker for finishing to medium cutting | FamilyName | WNM/GA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2359
Name
Turning Indexable Inserts
FamilyName
WNM/GA
BrandName
Tungaloy
