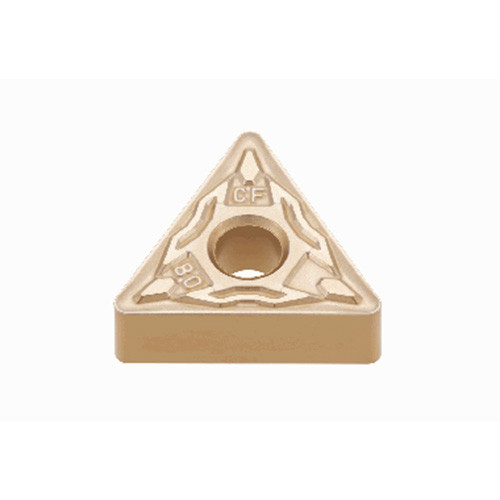

TNMG 332 CF T5105
Negative relief ang., M class, triangular insert, for finishing of grey and ductile cast Iron
Price: Log in For Price
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |

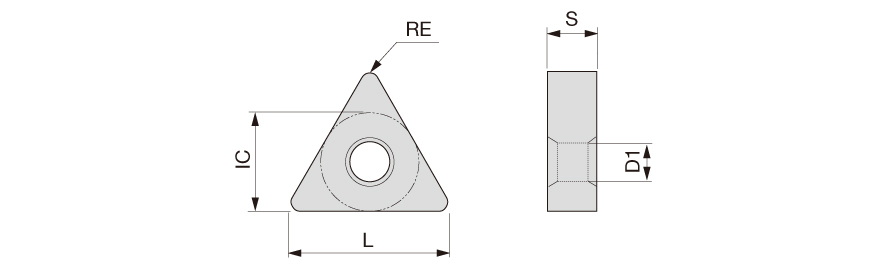

| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | CF |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T5105 | Cutting Edge Effective Length (LE) | 0.54″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, triangular insert, for finishing of grey and ductile cast Iron | FamilyName | TNMG-CF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1874
Name
Turning Indexable Inserts
FamilyName
TNMG-CF
BrandName
Tungaloy
