| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |

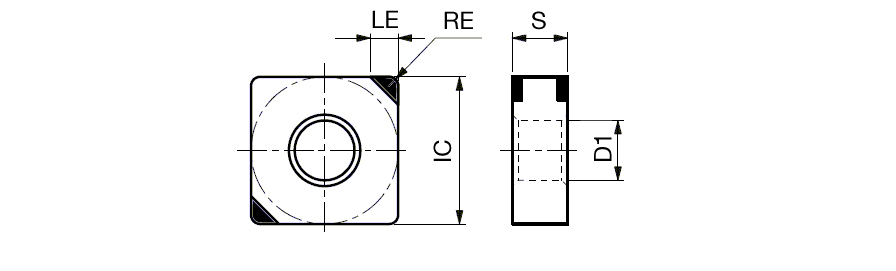

| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | BXC50 | Cutting Edge Effective Length (LE) | 0.094″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features

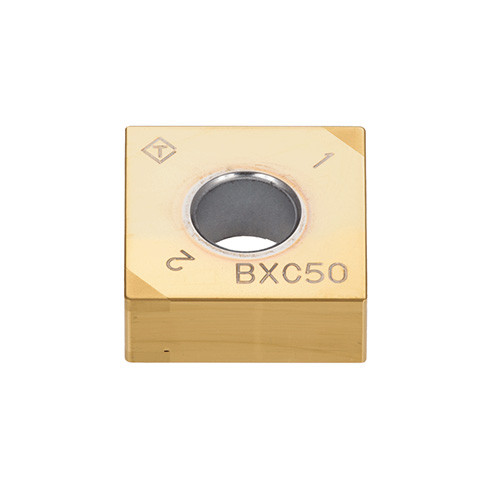

| Family Description | Negative relief ang., G class, square CBN insert | FamilyName | 4QP-SNGA |
| Remarks | The first letter "T" shows that the standard packing quantity is 10 pieces. The last letter of designation means as below. F: Sharp edge L: Low cutting force type H: Strong cutting edge type W,WL,WJ,WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0485
Name
Turning Indexable Inserts
FamilyName
4QP-SNGA
BrandName
Tungaloy
