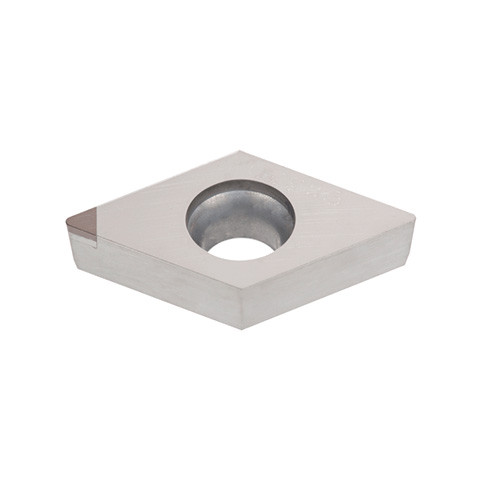

Q-DCMW 32.51 BX330
Positive 7deg relief ang., M class, 55deg rhombic CBN insert
Price: Log in For Price

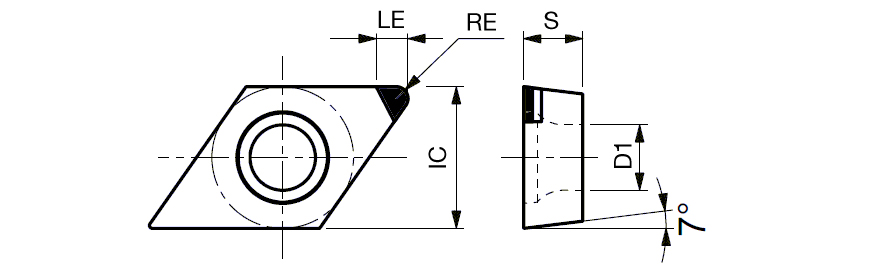

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX330 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.083″ |
| Tool Type | Turn Ultra hard Inserts | Unit | I |
Product Features
| Family Description | Positive 7deg relief ang., M class, 55deg rhombic CBN insert | FamilyName | Q-DCMW |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0441
Name
Turning Indexable Inserts
FamilyName
Q-DCMW
BrandName
Tungaloy
