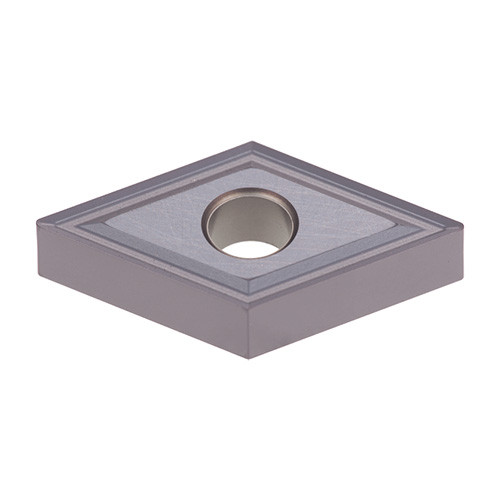

DNMG 431 SA AH120
Negative relief ang., M class, 55deg rhombic insert, for medium cutting
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0394″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.1575″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-SA |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH120 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for medium cutting | FamilyName | DNMG-SA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3527
Name
Turning Indexable Inserts
FamilyName
DNMG-SA
BrandName
Tungaloy
