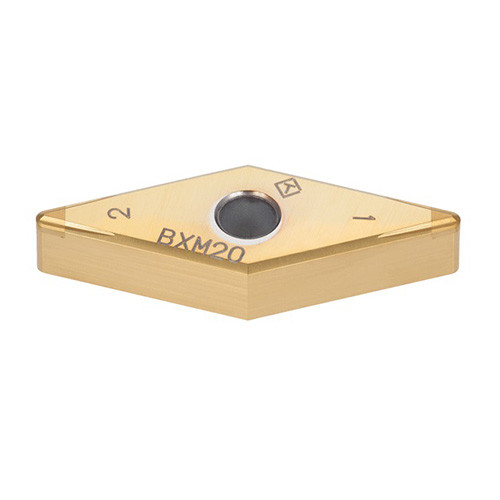

2QP-VNGM 332 HF BXM20
Negative relief ang., G class, 35deg rhombic CBN insert, with chipbreaker for finishing
Price: Log in For Price

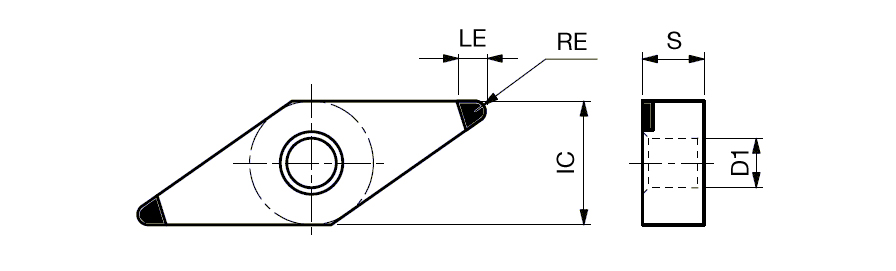

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.0118″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0315″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | HF |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | BXM20 | Cutting Edge Effective Length (LE) | 0.087″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, 35deg rhombic CBN insert, with chipbreaker for finishing | FamilyName | 2QP-VNGM-HF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0485
Name
Turning Indexable Inserts
FamilyName
2QP-VNGM-HF
BrandName
Tungaloy
