FNMG 332E TM AH8015
Negative relief ang., M class insert for medium cutting with corner angle 45 degree for existing toolholder carrying DN**33*E insert.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0394″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |

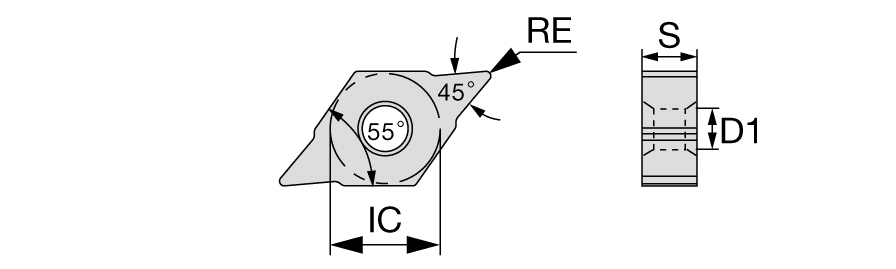

| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Nega-TM |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8015 | Cutting Edge Effective Length (LE) | 0.118″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class insert for medium cutting with corner angle 45 degree for existing toolholder carrying DN**33*E insert. | FamilyName | FNMG*E-TM |
| Remarks | Make sure to offset the cutting edge position after insert change. Please note that the insert shim may interfere with the workpiece when FNMG insert is used with Q style toolholder to undercut a work diameter of 50 mm or smaller. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
FNMG*E-TM
BrandName
Tungaloy
