3QP-TNGM 331 HP BXA10

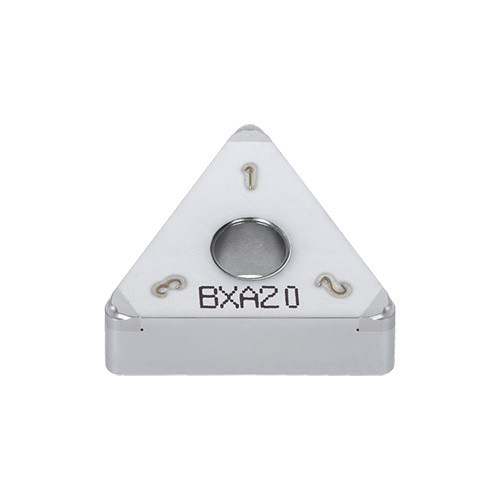

Negative relief ang., G class, triangular CBN insert with chipbreaker for finishing of hardened steel
Price: Log in For Price

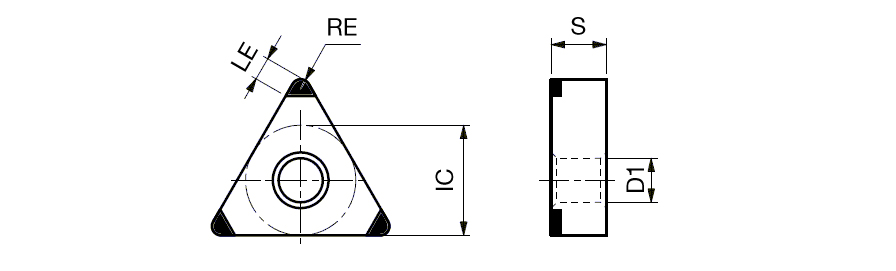

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.0012″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0087″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Nega-HP |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiAlN+TiCN | Body Material | Carbide |
| Grade | BXA10 | Cutting Edge Effective Length (LE) | 0.087″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, triangular CBN insert with chipbreaker for finishing of hardened steel | FamilyName | 3QP-TNGM-HP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0353
Name
Turning Indexable Inserts
FamilyName
3QP-TNGM-HP
BrandName
Tungaloy
