| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.059″ |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | MFT-JS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.106″ | Cutting Edge Effective Length (LE) | 0.131″ |
| Tool Type | Turn Positive Inserts | Unit | I |
| Min D.O.C. | 0.0039″ |
Product Features

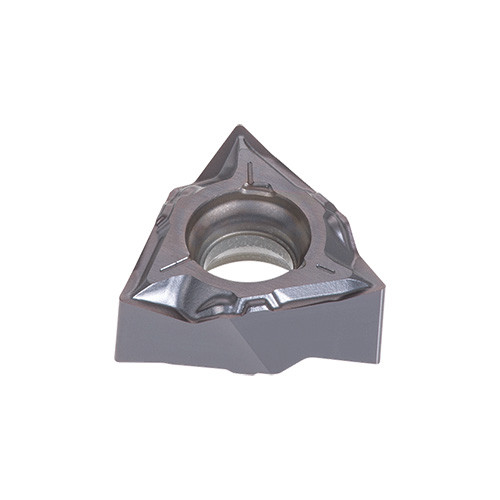

| Family Description | Double sided trigon inserts with JS chipbreaker for finishing to medium cutting | FamilyName | WXGU-JS |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
WXGU-JS
BrandName
Tungaloy
