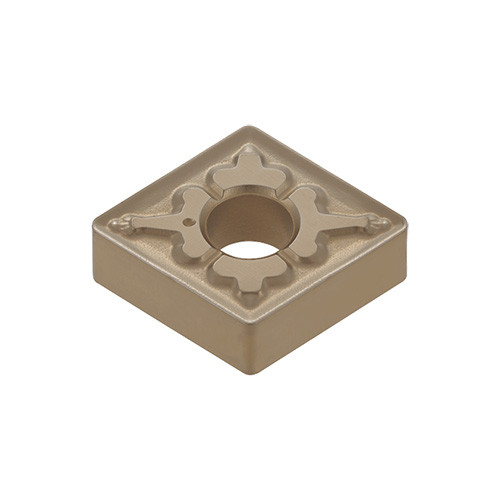

CNMG 322 TM T9215
Negative relief ang., M class, 80deg rhombic insert, for medium cutting
Price: Log in For Price

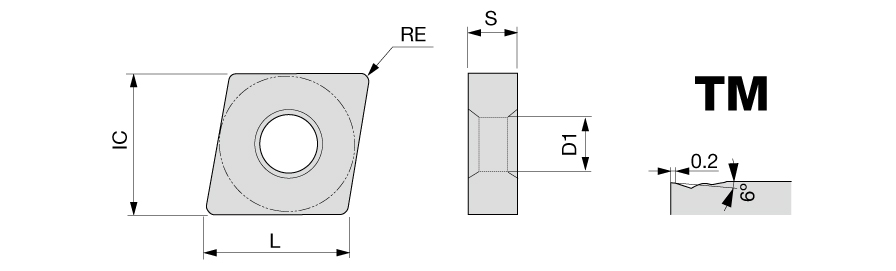

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0394″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1969″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Nega-TM |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9215 | Cutting Edge Effective Length (LE) | 0.317″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium cutting | FamilyName | CNMG-TM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1036
Name
Turning Indexable Inserts
FamilyName
CNMG-TM
BrandName
Tungaloy
