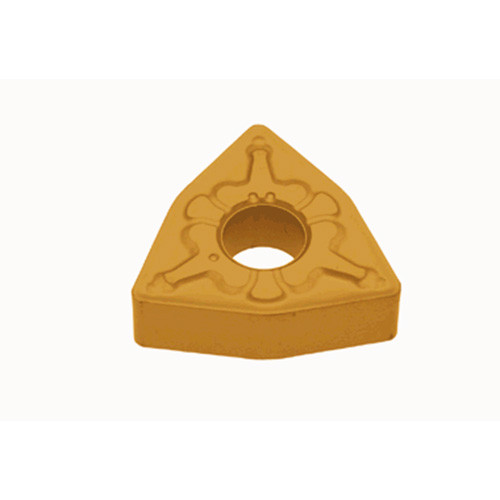

WNMG 433 TM T515
Negative relief ang., M class, trigon insert, for medium cutting
Price: Log in For Price
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0393″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1969″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Nega-TM |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | T515 | Cutting Edge Effective Length (LE) | 0.296″ |
| Fixing Hole Diameter (D1) | 0.203″ | Unit | I |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, trigon insert, for medium cutting | FamilyName | WNMG-TM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2425
Name
Turning Indexable Inserts
FamilyName
WNMG-TM
BrandName
Tungaloy
