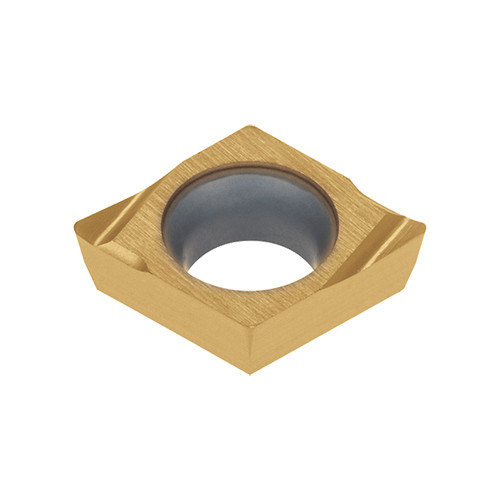

EPGT 4.51.80 FR-W08 SH725
Positive 11 deg relief angle, G class, 75 deg rhombic insert, 1ead type chipbreaker for finishing
Price: Log in For Price

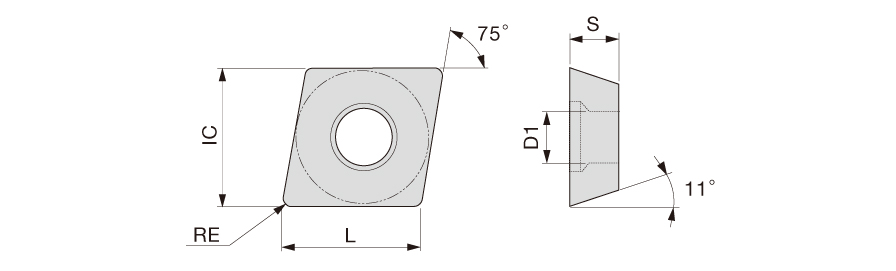

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.0079″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.0039″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.146″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.055″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | W08 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.075″ | Cutting Edge Effective Length (LE) | 0.135″ |
| Tool Type | Turn Positive Inserts | Unit | I |
Product Features
| Family Description | Positive 11 deg relief angle, G class, 75 deg rhombic insert, 1ead type chipbreaker for finishing | FamilyName | EPGTR/L-W08 |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0309
Name
Turning Indexable Inserts
FamilyName
EPGTR/L-W08
BrandName
Tungaloy
