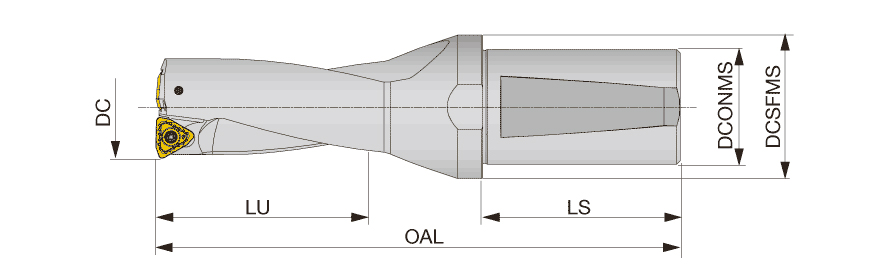

| Cutting Diameter (DC) | 1-5/8″ | Cutting Diameter Maximum (DCX) | 1-5/8″ |
| Usable Length (LU) | 3.313″ | Flange Diameter (DF) | 2.165″ |
| Application | | General Drilling | | Point Length (PL) | 0.063″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |

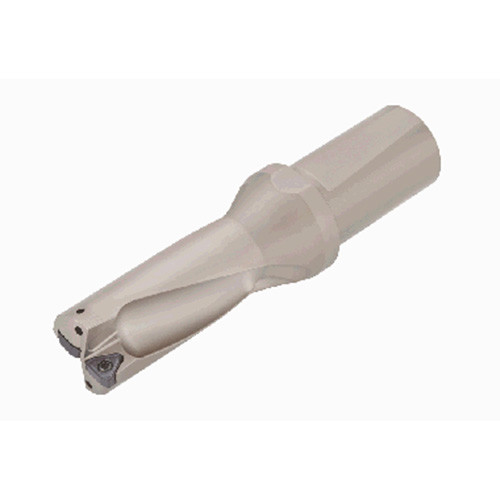

| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | WWMU11X512R-DJ |
| Shank Length (LS) | 2.688″ | Body Material | Steel |
| Functional Length (LF) | 5.111″ | Decimal Equivalent | 1.625″ |
| Overall Length (OAL) | 7.862″ | Unit | I |
| Cutting Diameter Minimum (DCN) | 1-5/8″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=2, Whistle notch | COO | JAPAN |
Shipping Info
Weight per item
3.5053
