TDXU-0562FS-05

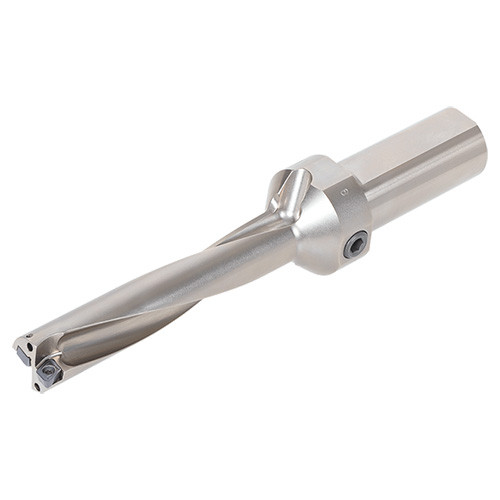

TungDrillTwisted Indexable insert drills with side & rear coolant port, L/D = 5, Flat cotter
Price: Log in For Price

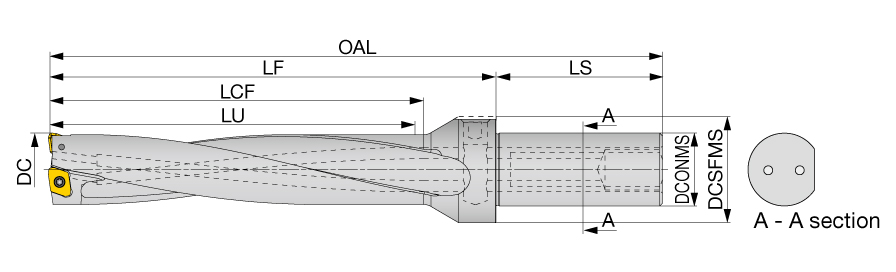

| Cutting Diameter (DC) | 0.562″ | Cutting Diameter Minimum (DCN) | 0.562″ |
| Usable Length (LU) | 2.825″ | Cutting Diameter Maximum (DCX) | 0.562″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Point Length (PL) | 0.015″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2″ | Master Insert Identification (MIID) | XPMT040104R-DJ |
| Length Chip Flute (LCF) | 2.95″ | Body Material | Steel |
| Functional Length (LF) | 3.841″ | Decimal Equivalent | 0.562″ |
| Overall Length (OAL) | 5.856″ | Unit | I |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills with side & rear coolant port, L/D = 5, Flat cotter | COO | JAPAN |

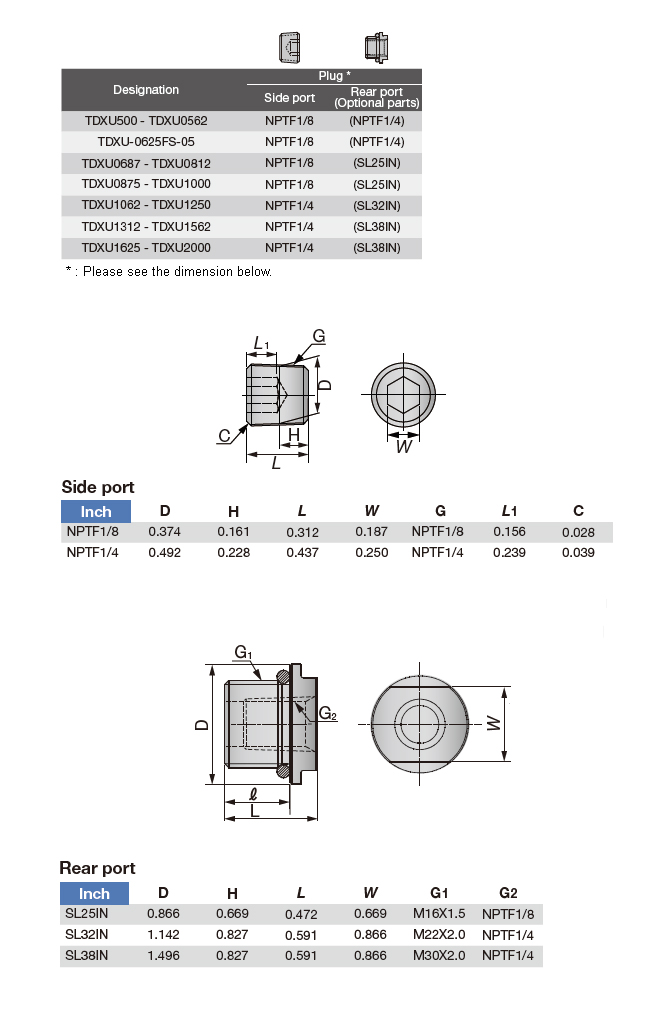

| Remarks | For plug of side and rear port, click on "More Info". |
Shipping Info
Weight per item
0.6063
