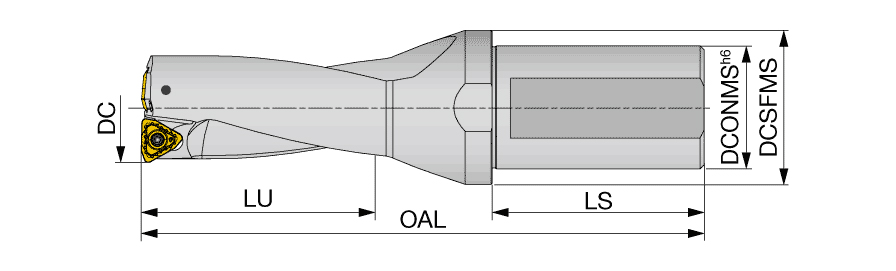

| Cutting Diameter (DC) | 31 mm | Cutting Diameter Minimum (DCN) | 31 mm |
| Usable Length (LU) | 63.1 mm | Cutting Diameter Maximum (DCX) | 31 mm |
| Application | | General Drilling | | Flange Diameter (DF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 1.1 mm |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Shank Length (LS) | 59 mm | Master Insert Identification (MIID) | WWMU08X408R-DJ |
| Functional Length (LF) | 90 mm | Body Material | Steel |
| Overall Length (OAL) | 150.1 mm | Unit | M |
Product Features

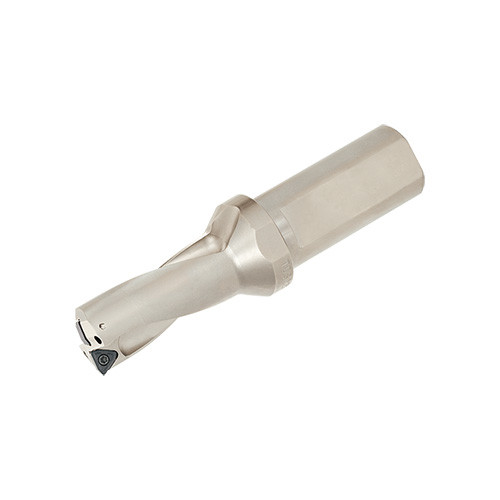

| Family Description | TungSix-Drill Indexable insert drills, L/D=2, Flat cotter | COO | JAPAN |
Shipping Info
Weight per item
0.7660
