TRLGCH15.00X1650-U04

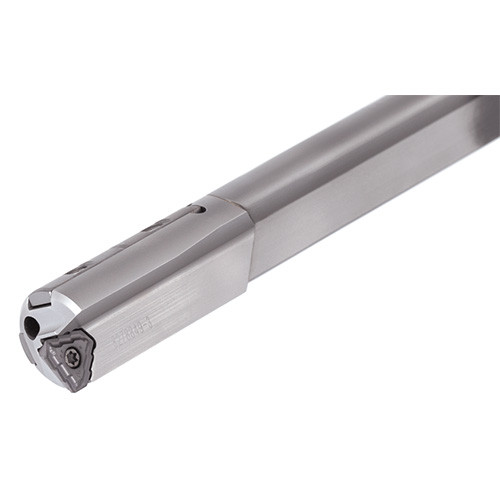

Drill body for gun drill machine. For drilling cross holes.

Price: Log in For Price

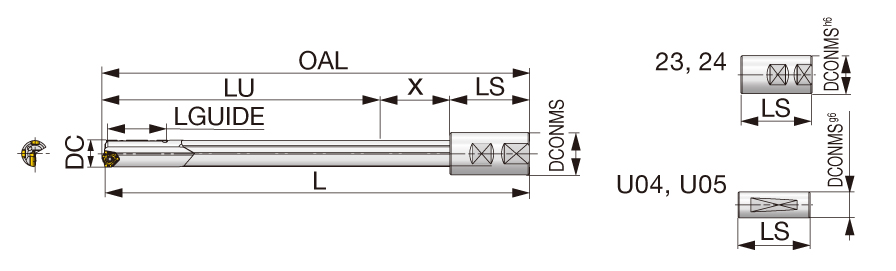

Cutting Diameter (DC) | 15 mm | Cutting Diameter Minimum (DCN) | 15 mm |
Usable Length (LU) | 1559 mm | Cutting Diameter Maximum (DCX) | 15 mm |
Application | | Gundrill | | Point Length (PL) | 2 mm |
Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | TOHT07... |
Shank Length (LS) | 70 mm | Body Material | Steel |
Functional Length (LF) | 1650 mm | Unit | M |
Overall Length (OAL) | 1652 mm |


Product Features
Family Description | Drill body for gun drill machine. For drilling cross holes. | COO | JAPAN |

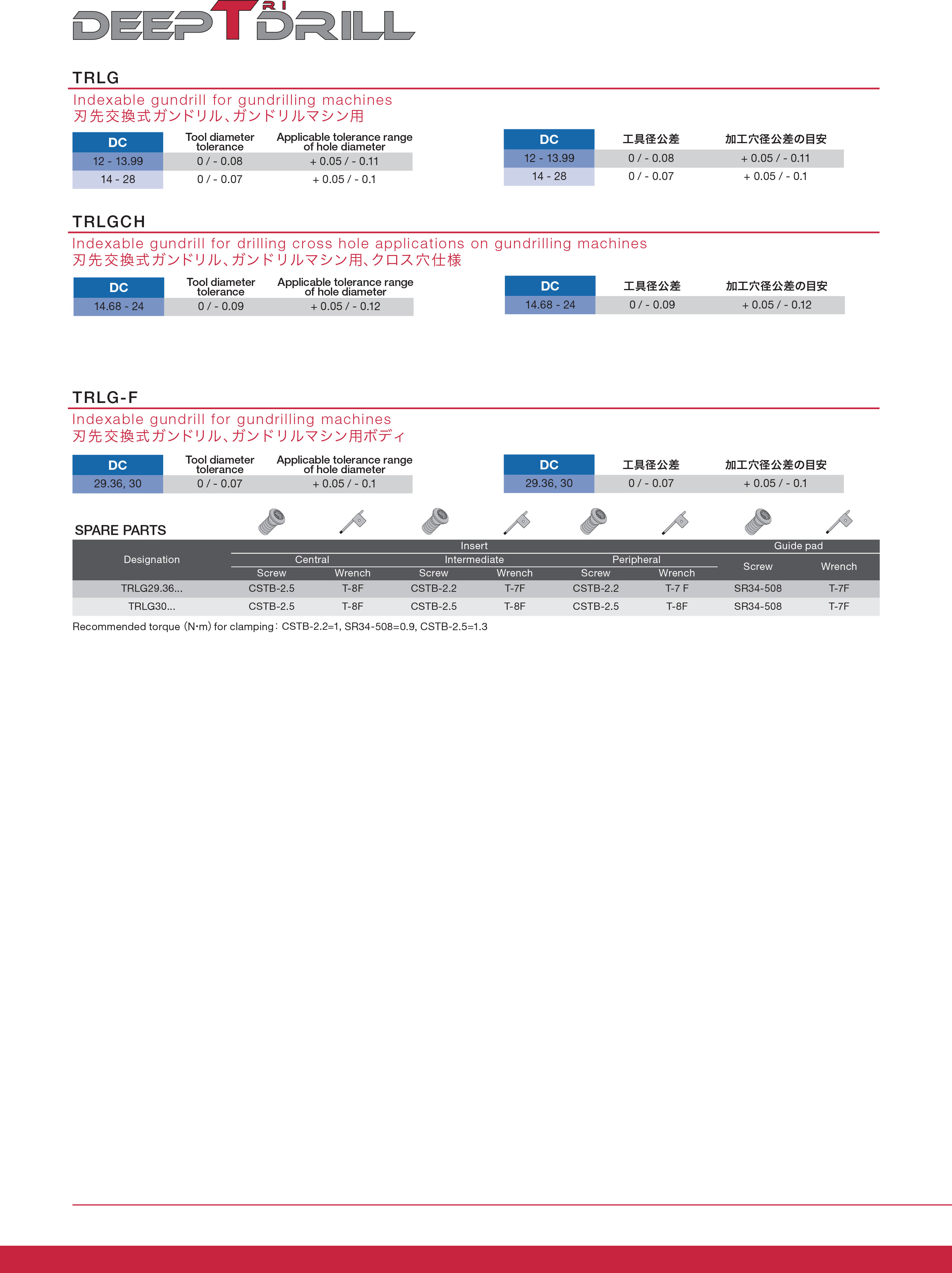

Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
