MCTRCH14.68XU25.4-25
Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers
Price: Log in For Price

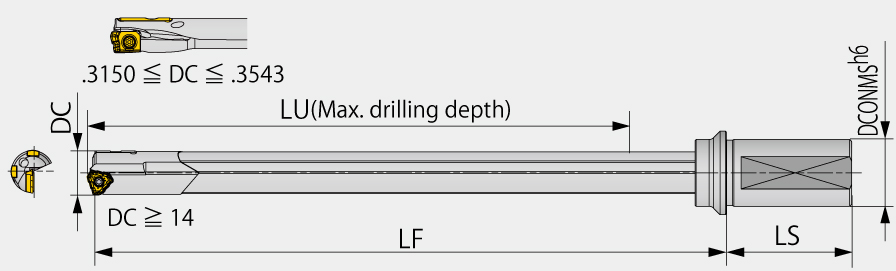

| Cutting Diameter (DC) | 0.578″ | Cutting Diameter Minimum (DCN) | 0.578″ |
| Usable Length (LU) | 14.843″ | Cutting Diameter Maximum (DCX) | 0.578″ |
| Application | | General Drilling | | Point Length (PL) | 0.079″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | TOHT07... |
| Shank Length (LS) | 2.205″ | Body Material | Steel |
| Functional Length (LF) | 16.22″ | Decimal Equivalent | 0.578″ |
| Overall Length (OAL) | 18.504″ | Unit | I |
Product Features
| Family Description | Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers | COO | JAPAN |

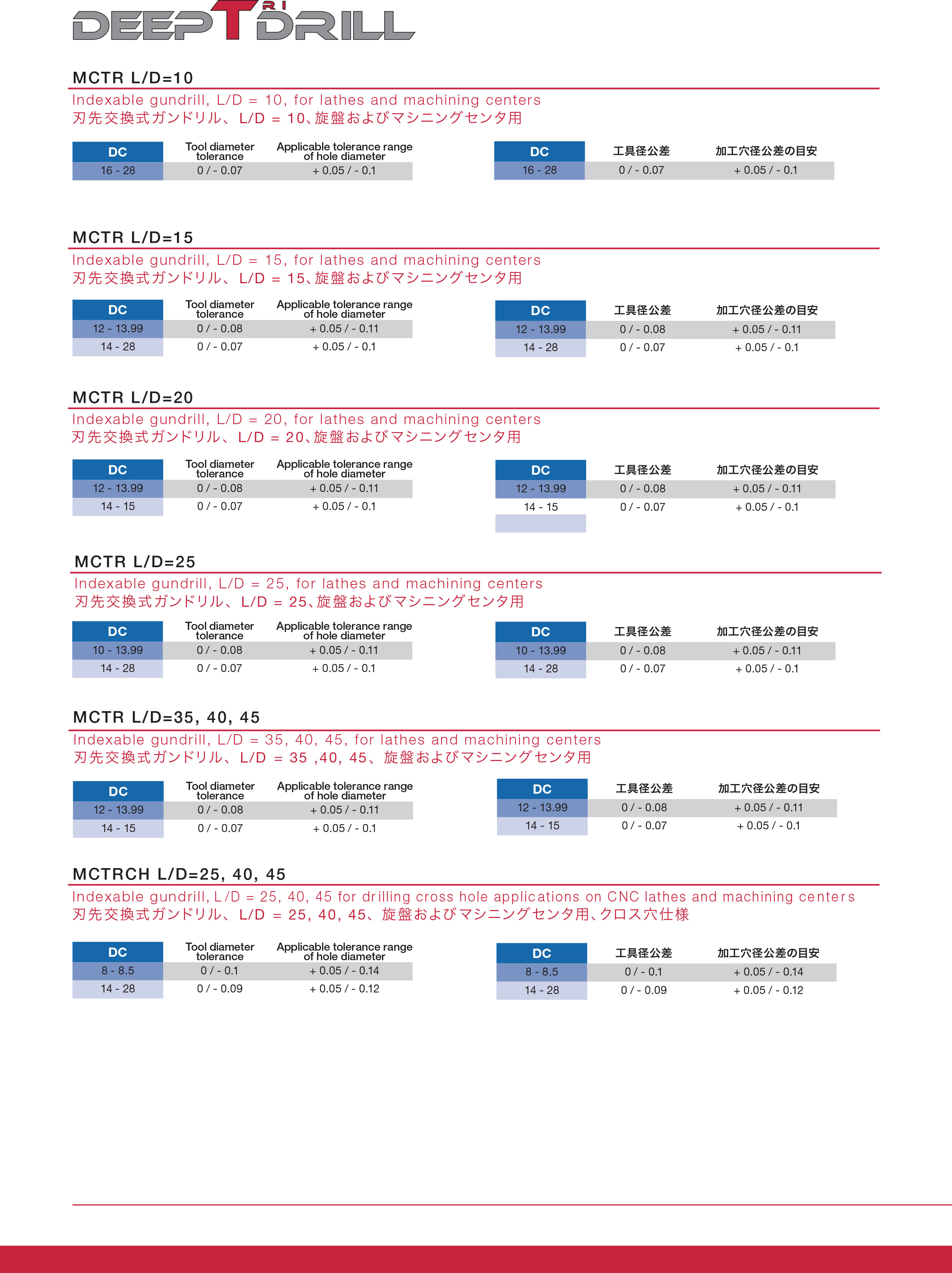

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the Product Report. |
Shipping Info
Weight per item
0.0000
