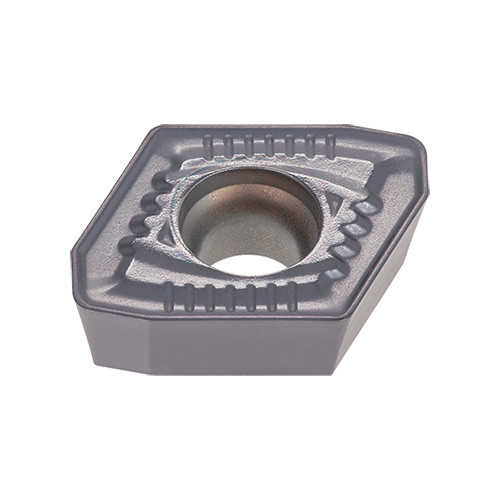

XPMT150512R-DJ AH6030
TungDrill insert with DJ chipbreaker for general purpose
Price: Log in For Price

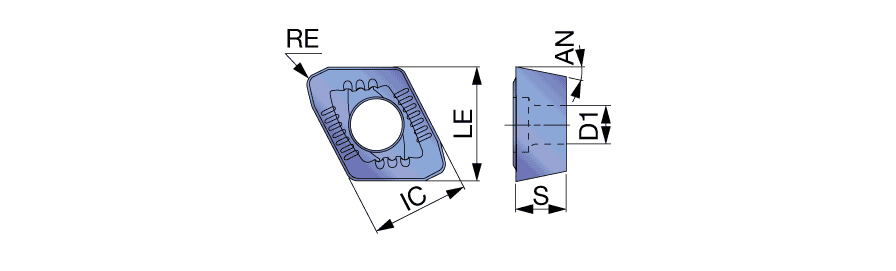

| Cutting Edge Length (L) | 0.591″ | Application | | General Drilling | |
| Insert Width (W1) | 0.634″ | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.219″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.591″ | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.0472″ | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.22″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | AH6030 |
Product Features
| Family Description | TungDrill insert with DJ chipbreaker for general purpose | COO | JAPAN |
Shipping Info
Weight per item
0.3902
