BTU-134 X.XXX

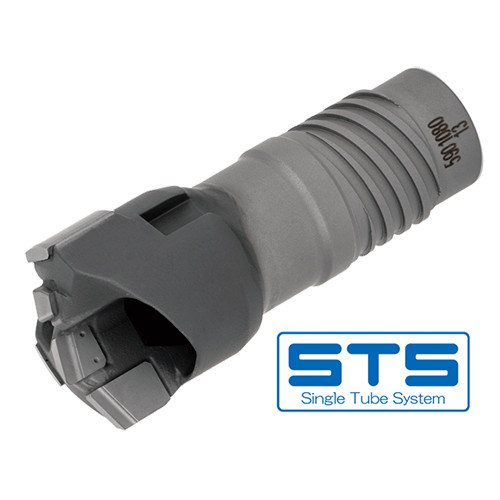

Single Tube Drills with Outer 4 Start Thread connection and Brazed Tips, dia= 0.614 - 2.559 inch. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price

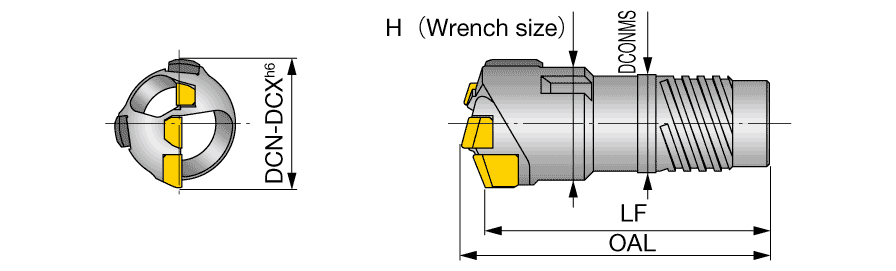

| Application | | BTA system | | Cutting Diameter Minimum (DCN) | 2.473″ |
| Measurement Type | Inch | Connection Diameter Machine Side (DCONMS) | 1.85″ |
| Overall Length (OAL) | 3.307″ | Body Material | Carbide |
| Cutting Diameter Maximum (DCX) | 2.559″ | Unit | I |
Product Features
| Family Description | Single Tube Drills with Outer 4 Start Thread connection and Brazed Tips, dia= 0.614 - 2.559 inch. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
