TCFF200A3-15/40C20-93 FX510

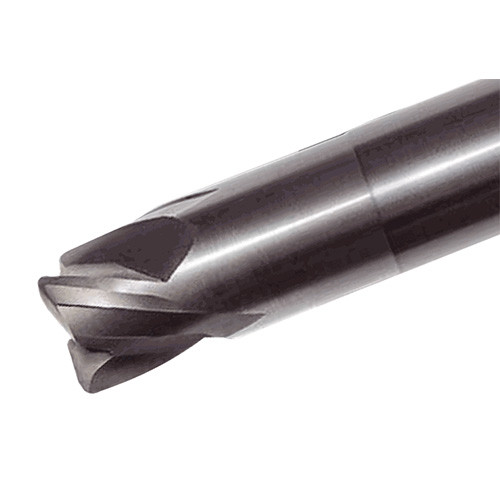

3 flute solid Ceramic endmill for high feed rate
Price: Log in For Price

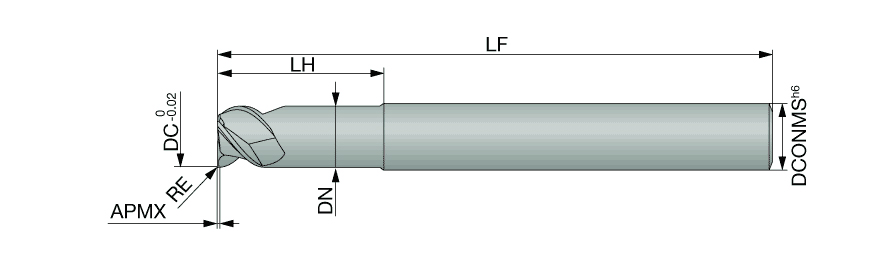

| Cutting Diameter (DC) | 20 mm | Application | | High Feed Milling | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Grade | FX510 |
| Overall Length (OAL) | 93 mm | Neck Diameter (DN) | 19.5 mm |
| Cutting Edge Material | Ceramic | Head Length (LH) | 40 mm |
| Coating | Uncoated | Neck Length (LN) | 40 mm |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide non center cutting endmills 90 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 3 flute solid Ceramic endmill for high feed rate | FamilyName | TCFF-A3 |
| Remarks | Caution: High speed machining generates heat in the tool and chuck holder. Thermal expansion of the holder will often lead to tool damage. Use an air coolant during machining to cool the tool holder. Milling chucks are recommended for the tool holder. | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.1140
Name
Square & Corner Radius End Mills
FamilyName
TCFF-A3
BrandName
Tungaloy
