C3PTUNL18065-16-CHP

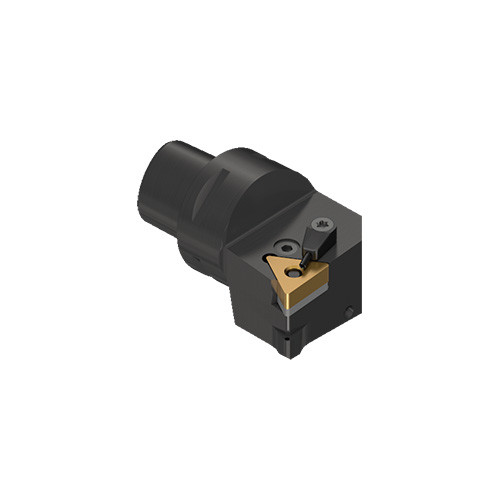

TungCap Lever-lock toolholder with 93 deg approach angle, for negative 60 deg triangular inserts, with high pressure coolant capability


Price: Log in For Price

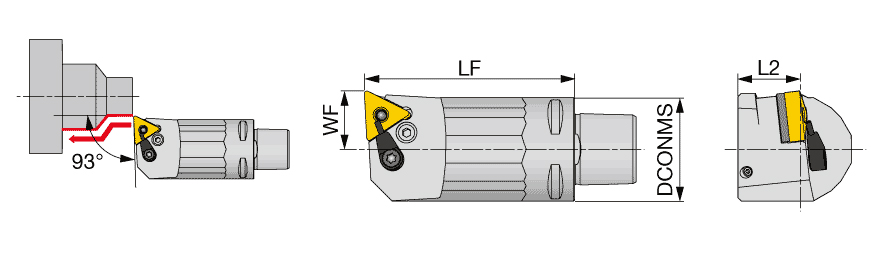

Overall Length (OAL) | 3.307″ | Application | | Face contact interface | For Triangular insert | |
Functional Length (LF) | 2.559″ | Body Material | Steel |
Functional Width (WF) | 0.709″ | Tool Type | Tapered Shank Turning Tools |
Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
Cutting Direction (HAND) | Left Hand | Unit | I |
Master Insert Identification (MIID) | TNMG332 |


Product Features
Family Description | TungCap Lever-lock toolholder with 93 deg approach angle, for negative 60 deg triangular inserts, with high pressure coolant capability | FamilyName | C-PTUNL-CHP |
Remarks | Applicable for 14 MPa coolant Cannot be used for boring | BrandName | Tungaloy |
COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
C-PTUNL-CHP
BrandName
Tungaloy
