XWXPL2525M09
Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts
Price: Log in For Price

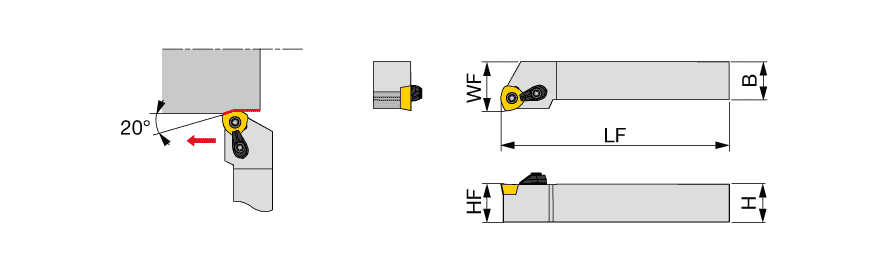

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | WPMT090725ZPL-ML |
| Shank Width (B) | 25 mm | Application | | For 80deg Trigon insert | For Heavy Turning | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 35 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts | FamilyName | XWXPR/L |
| Remarks | Note: Care should be taken not to confuse the hand of inserts to be used. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.8930
Name
General Indexable Turning Tools
FamilyName
XWXPR/L
BrandName
Tungaloy
