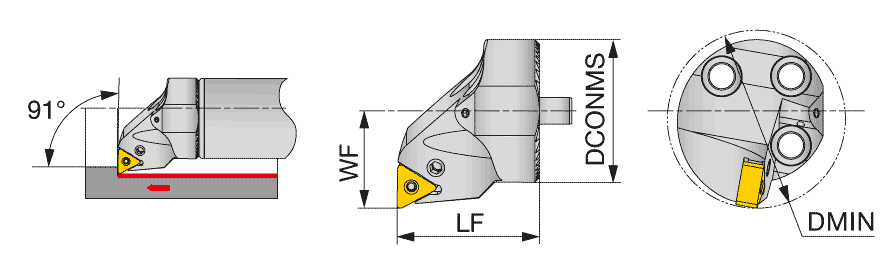

| Functional Length (LF) | 1.26″ | Master Insert Identification (MIID) | TNMG232E |
| Functional Width (WF) | 0.866″ | Application | | For Triangular insert | |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.575″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features

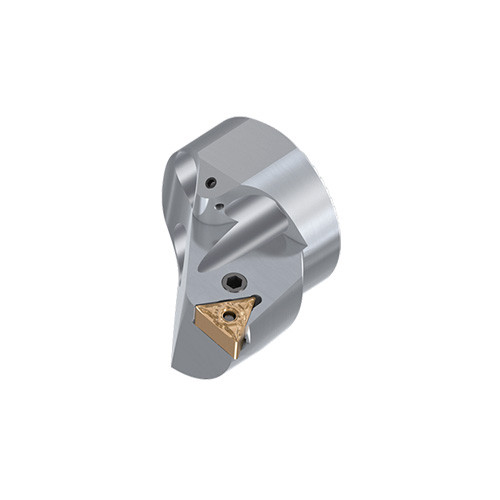

| Family Description | Lever-lock clamp exchangeable boring head for Negative triangular insert TN**23... | FamilyName | S-PTFNR/L-H |
| Remarks | DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
S-PTFNR/L-H
BrandName
Tungaloy
