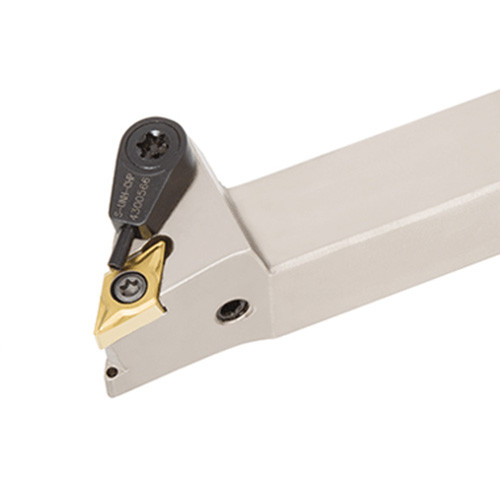

JSDJ2XL082-CHP
No-offset Screw-on toolholder for DX*U inserts, with channels for high pressure coolant
Price: Log in For Price

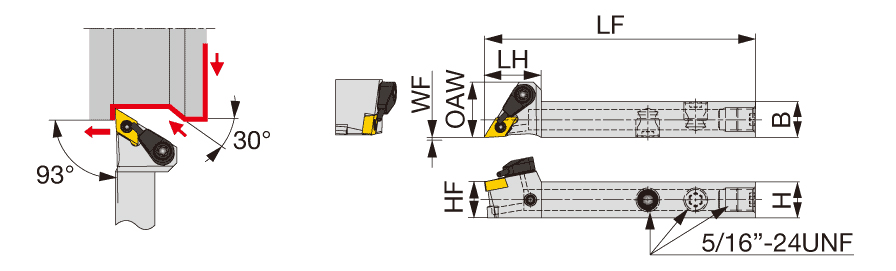

| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | DXGU220.5R |
| Shank Width (B) | 1/2″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 3.344″ | Body Material | Steel |
| Functional Length (LF) | 3.344″ | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND PROFILING |
| Head Length (LH) | 3/4″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Unit | I |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | No-offset Screw-on toolholder for DX*U inserts, with channels for high pressure coolant | FamilyName | JSDJ2XR/L-CHP |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2734
Name
General Indexable Turning Tools
FamilyName
JSDJ2XR/L-CHP
BrandName
Tungaloy
