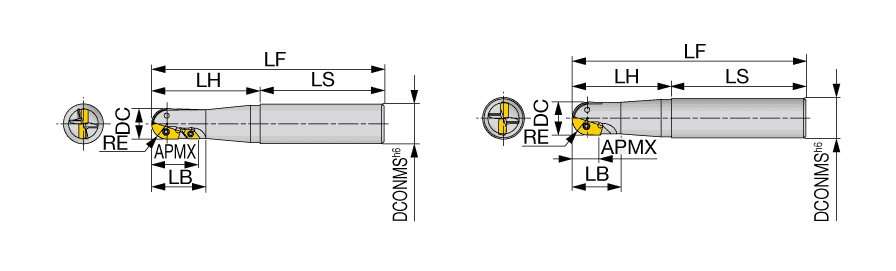

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 3-1/4″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 5.53″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 0.827″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.53″ | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 2.28″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | ZPET100U-MJ | Unit | I |
Product Features

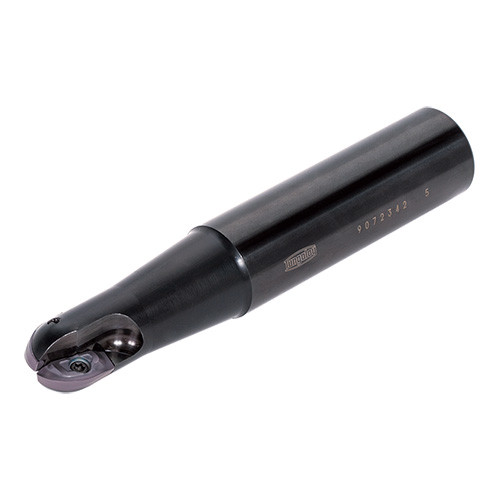

| Family Description | Indexable ball-nose endmill for semi-finishing | FamilyName | EBP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.2544
Name
Indexable End Mills
FamilyName
EBP
BrandName
Tungaloy
