| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 60 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 150 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Shank Type | Round | Shank Length (LS) | 90 mm |
| Application | | High Feed Milling | Profile Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
| Master Insert Identification (MIID) | LNMX0506R5-MJ |
Product Features

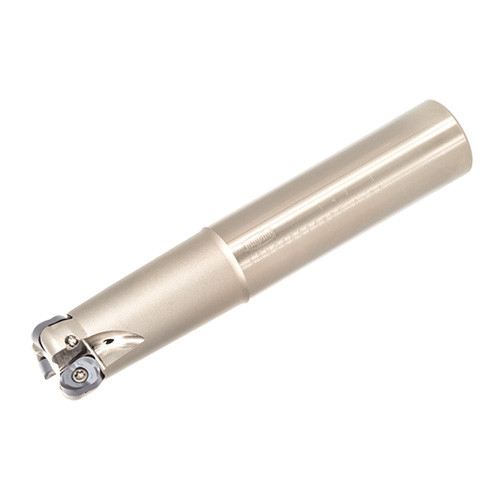

| Family Description | Radius cutter with double-sided insert; Shank type | FamilyName | EXLN |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EXLN
BrandName
Tungaloy
