| Cutting Diameter (DC/DCX) | 125 mm | Body Material | Steel |
| Cutting Diameter (DC) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 142 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | 45 Facemills |
| Overall Length (OAL) | 63 mm | Unit | M |
| Master Insert Identification (MIID) | SDKN53ZTN |
Product Features
| Family Description | 45 deg face mills with wedge clamped square inserts | FamilyName | TMD5400RI |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name

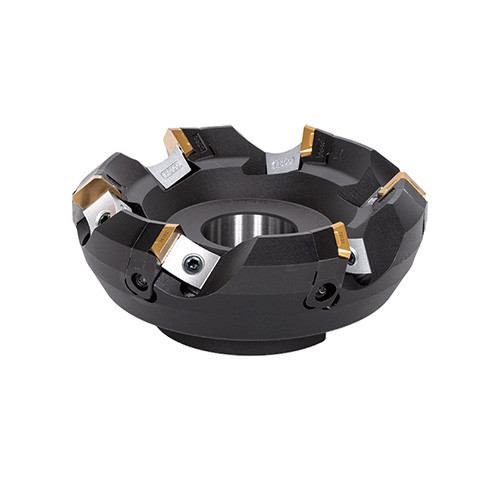

Indexable Face Mills
FamilyName
TMD5400RI
BrandName
Tungaloy
