TSE3003RIA

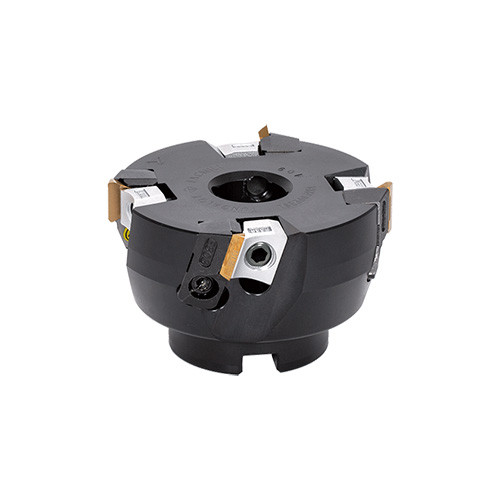

Shoulder square mills with wedge clamped high-posi triangle inserts
Price: Log in For Price

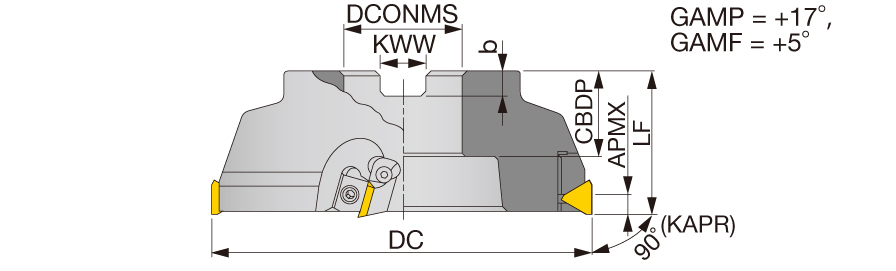

| Cutting Diameter (DC/DCX) | 80 mm | Body Material | Steel |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 80 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 8 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | TEEN32ZTR |
Product Features
| Family Description | Shoulder square mills with wedge clamped high-posi triangle inserts | FamilyName | TSE3000R |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.3980
Name
Indexable Face Mills
FamilyName
TSE3000R
BrandName
Tungaloy
