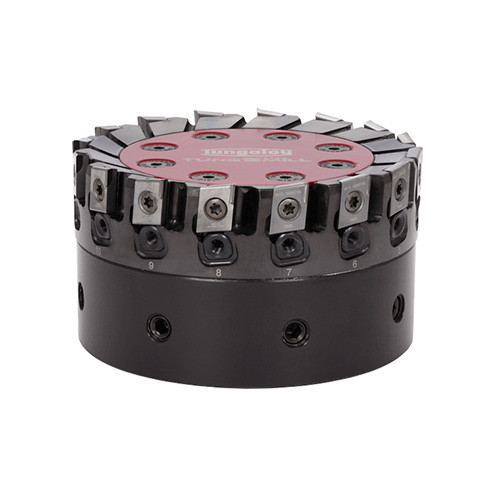

TPYP12M063B22.0R10
High speed milling cutter with PCD insert for non ferrous materials
Price: Log in For Price

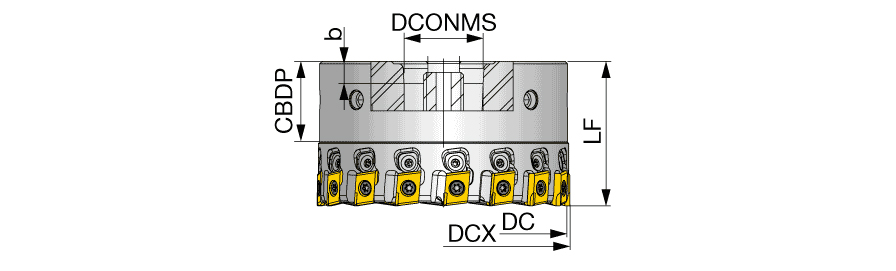

| Cutting Diameter (DC/DCX) | 64.4 mm | Master Insert Identification (MIID) | YPEB12X3-1A01R-D |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 64.4 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 55 mm |
| Overall Length (OAL) | 55 mm | Unit | M |
Product Features
| Family Description | High speed milling cutter with PCD insert for non ferrous materials | FamilyName | TPYP12 |
| Remarks | DCX: Outside diameter DC: diameter with 01 type insert | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
1.8270
Name
Indexable Face Mills
FamilyName
TPYP12
BrandName
Tungaloy
