| Applicable Material | | Steel | Stainless Steel | | Grade | T3130 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |

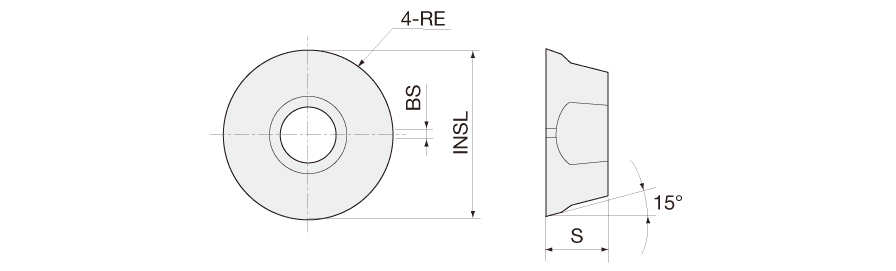

| Insert Length (INSL) | 0.504″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.2362″ | Number of Cutting Edges | 4 |
| Depth of Cut Maximum (APMX) | 0.236″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.187″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.031″ | Unit | I |
| Coating | TiCN+Al2O3+TiN |
Product Features

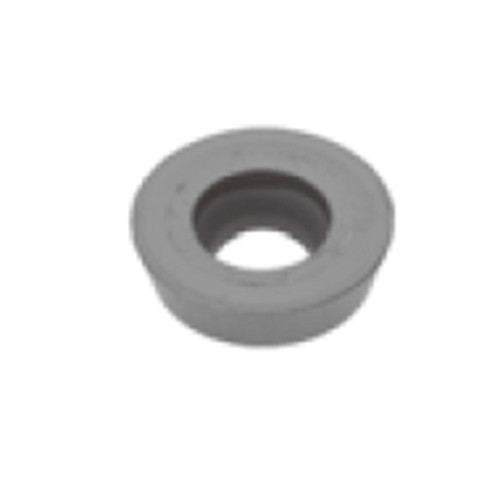

| Family Description | Flat-top button insert | FamilyName | RDMW12/16 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1477
Name
Milling Indexable Inserts
FamilyName
RDMW12/16
BrandName
Tungaloy
