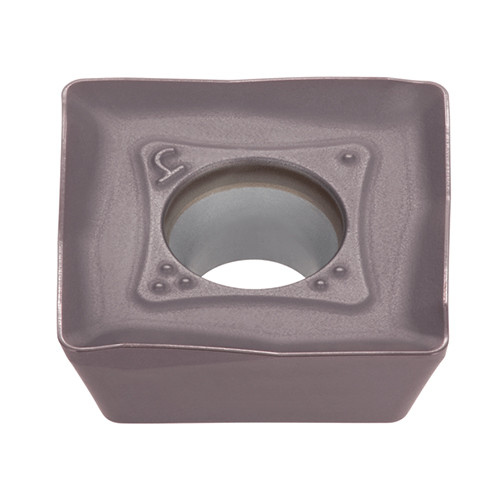

SWMT1304PDPR-MJ AH140
For general purpose. Sharp edge provides low cutting force.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

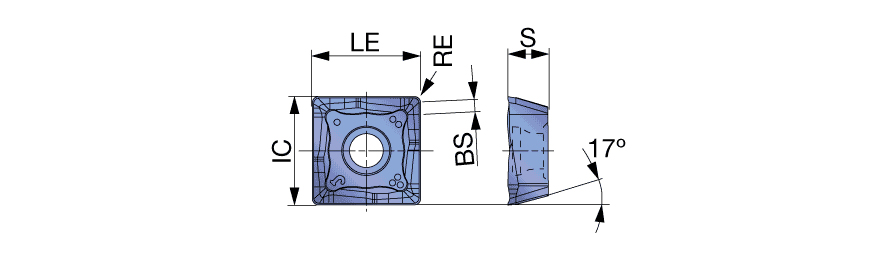

| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.394″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Width (W1) | 0.535″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.535″ | Cutting Edge Effective Length (LE) | 0.535″ |
| Insert Thickness (S) | 0.197″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | AH140 |
Product Features
| Family Description | For general purpose. Sharp edge provides low cutting force. | FamilyName | SWMT1304-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2028
Name
Milling Indexable Inserts
FamilyName
SWMT1304-MJ
BrandName
Tungaloy
